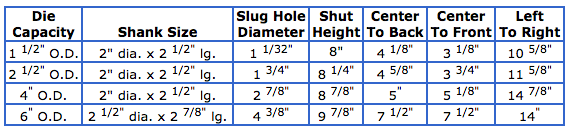

Master Compound Die Specifications
The master die is a precision two post steel or aluminum die shoe set with a knockout system, adjustable guides, and is key aligned for irregular shapes.
The master die is complete and will accept a variety of inserts up to the die capacity.
By using the K&K Compound Die Tooling system you eliminate excessive die design, assembly and tryout. The K&K system gives your company the advantage of lower cost tooling, ease of maintenance, quick changeover, and less storage without sacrificing accuracy and long tool life.
| 1 | Punch |
| 2 | Die Button |
| 3 | Compound |
| 4 | Knock-Out |
| 5 | Stripper |
| 6L | Lower Die Shoe |
| 6U | Upper Die Shoe |
| 7 | Knock-Out Bar |
| 8 | Knock-Out Spider |
| 9 | Knock-Out Pins |
| 10 | Punch Backing Plate |
| 11 | Punch Retainer |
| 12 | Lockscrew (Punch) |
| 13 | Die Retainer |
| 14 | Lockscrews (Die & Compound) |
| 15 | Lockscrews (Stripper) |
| 16 | Compound Retainer |
| 17 | Stripper Block |
| 18 | Compound Backing Plate |
| 19 | Stock Guides |
| Available Options: |  |
Modifications To Our Standard: |
| w Safety Micro Switchw Scrap Choppers
w Air Blowoff Assemblies |
|
w Shank Size Changew Die Shoe Construction
w Shut Height Differences |
